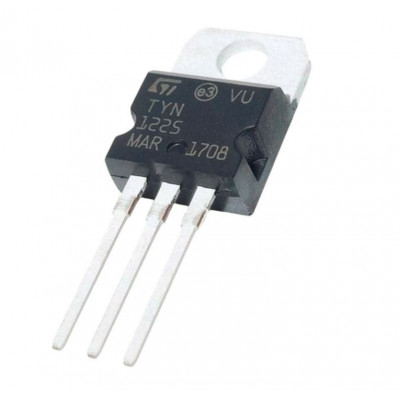

The TYN1225 SCR standard 25 A SCRs are suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities.
Features:-
- On-state rms current, IT(RMS) 25 A
- Repetitive peak off-state voltage, VDRM/VRRM 600 to 1200 V
- Triggering gate current, IGT 40 mA
- Insulated package TO-220AB ins – Insulating voltage 2500 V rms – UL1557 certified
Specifications:-
| Symbol | Parameter | Ratings | Units |
| IT(AV) | Average on-state current | 16 | A |
| IT(RMS) | On-state rms current | 25 | A |
| ITSM | Non-Repetitive Peak On-state Current | 314 | A |
| Tj | Operating junction temperature range | -40 to 125 | °C |
| Tstg | Storage Temperature | -40 to 150 | °C |
| I2t | I2t Value for fusing | 450 | A2S |
| VRGM | Maximum peak reverse gate voltage | 5 | V |
| IGM | Peak gate current | 1 | W |
DataSheet-> https://www.st.com/resource/en/datasheet/tyn1225.pdf
