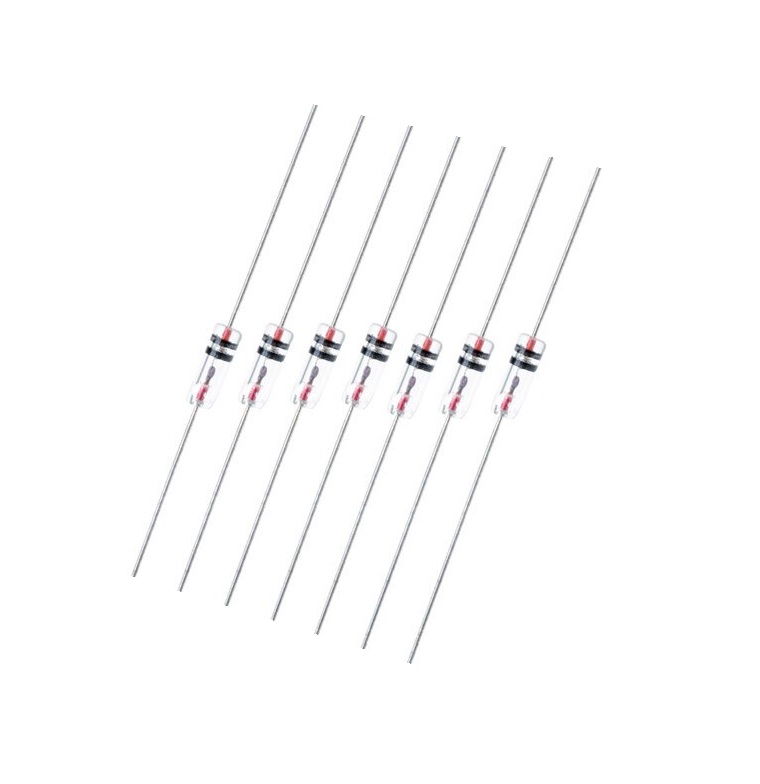

- 1N34 Germanium Diode. The 1N34A is a point contact diode in a DO7 type package employing N−form Germanium and gives efficient and excellent linearity when used in TV image detection, FM detection, radio AM detection, etc.
Features:
- Lower leakage current
- Flat Junction capacitance
- High mechanical strength
Features/Specs:
- Peak Inverse Voltage: 65V
- Reverse Voltage: 20V
- Peak Forward Surge Current: 0.5A
- Peak Forward Surge Current: 200mA
- Average Rectified Output Current: 50mA
- Temperature Range: −55 ~ +75℃
- Forward Voltage Drop: 1V
- Forward Current: 4mA
- Reverse Current: 30uA
- Junction Capacitance: 1 pF
- Rectification Efficiency: 55%
- Mounting Style: Through Hole
- Package: DO7
Application:
- AM/FM Detector
- Ratio Detector
- FM Discriminators
- TV Audio Detectors
- RF Input Probes
